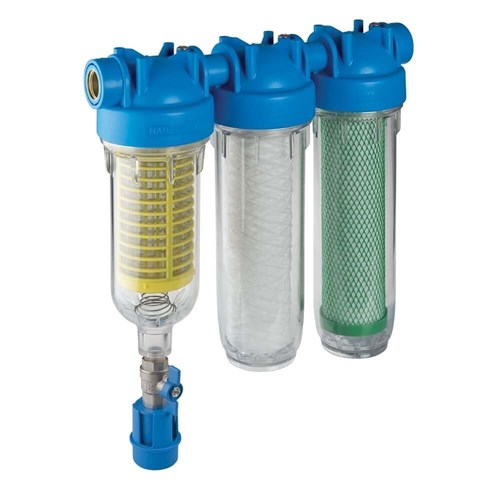

Hydra Rainmaster Trio Kit for Non Potable Rainwater 90m Mesh 25m Polywound 10m Carbon Block Filters

Code: 807344

Product Code

Where to Buy

Find Your Nearest Store
Technical Specifications
Product Type Hydra Self CleaningFilters
Brand Atlas Filtri
Flow Rate (L/min) 91.6
Material Polypropylene/PET
Nominal Micron Rating 10
Inlet/Outlet 1"
Min Pressure (bar) 1.8
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Whole Supply

A Hydra Rainmaster Trio Self Cleaning Filter with 1” BSP Plastic inlet/outlet with 90 micron stainless steel mesh filter moulded to two 10” Std housings containing 25 micron depth sediment cartridge and a 10 micron eco friendly carbon block filter cartridge.

Specially Designed for sediment filtration on  non-potable rain water supplies.

Flow rates up to 91lpm, however note that lower flows = lower pressure loss and better ability of the carbon to deal with odour.

The filter bowls are made from PET with exclusive ‘Atlas Green’ environmentally friendly manufacturing process. This clear filter bowl in combination with the included pressure gauges give an easy visual indicator of when the filter should be cleaned.

Hydra – Cleans Your Water, Cleans Itself

Italian made, for superior construction, the Atlas Filtri hydra range of hydra self cleaning filters make coarse sediment filtration easy and convenient.

Features include:

  • A range of low maintenance mesh filters are available to fit your needs
  • Cartridges feature an antimicrobial flat seal
  • Counter-current self cleaning system that is can be either manual or automatic for maximum particle removal
  • The drain funnel has a backflow preventing device, so this is as easy to install on mains as it is in rural
  • All Hydra models come with
    • Spanner
    • Bracket
    • Lubrikit (O-ring Lubricant)
Working Conditions
Max Working Pressure8bar (116 psi)
Max Working Temperature45°C (113°F)
Min Working Temperature4°C (39.2°F)
Hydra Rainmaster

The Hydra Rainmaster units are multistage units designed especially for non-potable rain water applications.

Rainwater tanks that are not used for potable water are often used to supply toilets, washing machines and gardens.

Non-potable rain water tanks often aren’t cleaned as frequently as potable rain water tanks, this can lead to valves etc being obstructed.

Hydra Rainmaster is designed to prevent sediment from depositing in the lines, valves from blocking and improve odour.
