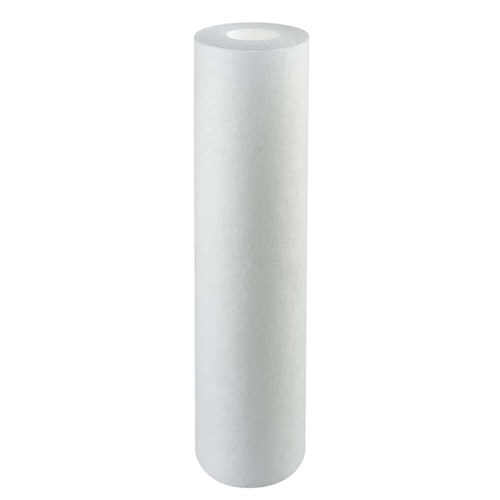

1 Micron Polyspun Fine Sediment Filter 10" Std

Code: 807292

Print
Product Code
ATL-CPP10SX1MCR

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Atlas Filtri
Product Type Polyspun Filters
Flow Rate (L/min) 33
Material Polypropylene
Nominal Micron Rating 1
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 80
Filter 10" Std
Description

SEDIMENT FILTERS

  • Sediment Filters are used to remove particles from water and protect downstream taps etc from clogging
  • Sediment cartridges are resistant to attack by bacteria and chemicals and are suitable for a wide range of applications, including domestic, commercial and industrial.

CS & TS Pleated Cartridge Range

  • Polyspun cartridges are commonly used as the final filtration for sediment as damage does not compromise the micron rating
  • These depth filters have a very large surface area and better dirt holding capacity than pleated filters
  • 5 & 1 Micron versions are also often used as the final filter before a UV as drinking water standards require a minimum of 5 micron depth filtration
  • 25 Micron version is sometimes used in place of a pleated filter for those who prefer to just change filters without the need to clean them, the higher dirt holding capacity means more time between giving the filters attention


Flow Rate vs Pressure Drop Δp

Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
