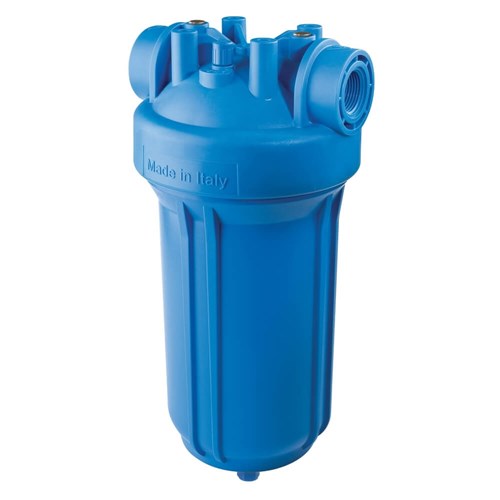

DP Mono Filter Housing 10" BIG 1" In/Out with Spanner & Bracket

Code: 807569

Print
Product Code
ATL-KITDPBIGPSPM10MONO1INAB

Where to Buy

Find Your Nearest Store
Technical Specifications
Product Type Big Housings
Brand Atlas Filtri
Material Reinforced Polypropylene
Inlet/Outlet 1"
Max Pressure (bar) 8.3
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Whole Supply
Filter 10" Big
Description
  • A Mono 10” BIG Filter housing, with 1” in/out plastic BSP threads, pressure gauge (manometer) ports and drain port.
  • Comes complete with bracket, spanner and o-ring  lubricant.
  • Designed to accept 10” x 4.5” filter cartridges.
  • These are most commonly used domestic, commercial and industrial applications
Features

These have time and labour saving additions built in:

  • Pressure gauge ports – no more need to plumb pressure gauges separately
    • Adding pressure gauges makes it easier than ever to see when filters need changed, giving you optimal life and performance of your filters
  • Drain Ports – Making changing filters easier than ever
    • Just open the drain port and drain the water into a bucket, no more messy water splashing on the floor, and the filter bowl is lighter and easier to manage
    • Drain ports are easy to open with the your included reversible spanner, one side for the filter bowl, the other for the drain port

These are available in:

  • Mono - single filter housing
  • Duo - Double Filter housing with moulded head
  • Trio – Triple - Filter housing with moulded head

All Atlas Filtri BIG Housings come with:

  • Bracket
  • Spanner
  • Lubrikit (O-ring lubricant)
Working Conditions
Max Working Pressure8.3bar (120 psi)
Max Working Temperature45°C (113°F)
Min Working Temperature4°C (39.2°F)
WaterMark Approved

WaterMark approved to AS/NZS 3497 CMA-WN-080009

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.
