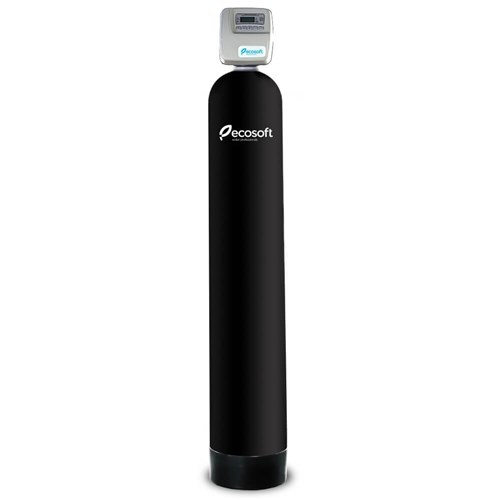

FP Series Automatic Sediment Filter 5 Micron 1054 for Fine Sediment Reduction

Code: 807482

Print
Product Code
ECO-FP1054CTPL

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Ecosoft
Product Type Sediment
Flow Rate (L/min) 57
Nominal Micron Rating 5
Inlet/Outlet 1"
Min Pressure (bar) 2
Max Pressure (bar) 6
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 30
Application Whole Supply
Filter Auto Sediment Filter
Description
  • These sediment filters are used to reduce sediment in water to 5 microns in size
  • Used instead of cartridge filtration where sediment loads or flows are higher, or to reduce operating costs
  • Contains Filter Ag Plus Media


System Specifications FP-1054CT
Nominal Flow Rate 10lpm
Media Quantity 28.3L
Backwash Flow Rate 20lpm
Backwash Duration 15-30min
Backwash Discharge Volume 300-600L
Pressure Drop in Service Mode 0.5-1.0bar
Inlet/Outlet Size 1” NPT
Net Weight 20kg
System Dimensions (width x height) 26 x 158cm
Features

FP Series Sediment Filters

Sediment filters reduce suspended solids in water supplies and are most commonly used where sediment loads, volume or flow is high. They can also reduce operating costs compared to cartridges.

FP Series sediment filters contain Filter Ag Plus, an all-natural, inert filter media. These filters do an excellent job of filtering suspended solids to the 5 micron or less range.

The deep bed filtration means that these have a higher capacity than standard multimedia in the same size system and the water produced is of superior quality.

These are excellent as the first stage of filtration and are often used as pre-filters for more complex water treatment.

Operating Specs
Water Temperature 4-30°C
Operating Pressure 2-6bar
Recommended Pre-Filter Rating 100 Micron
Operating Environment Indoor or Outdoor with additional cover
Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
