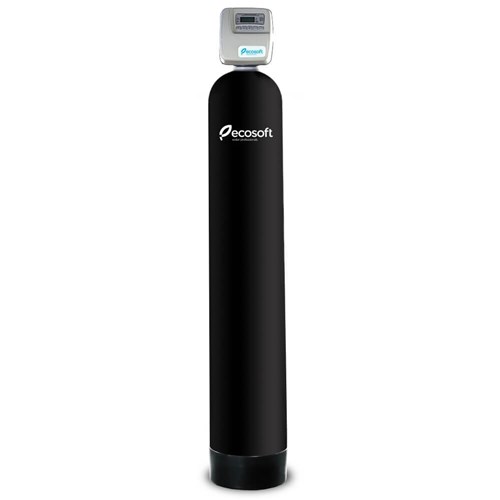

FPA Series Automatic Carbon Filter 1252 for Chlorine, Taste, Odour and Colour Reduction

Code: 807479

Print
Product Code
ECO-FPA1252CT

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Ecosoft
Product Type Carbon
Flow Rate (L/min) 14.2
Inlet/Outlet 1"
Min Pressure (bar) 2
Max Pressure (bar) 6
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 30
Application Whole Supply
Filter Auto Carbon Filter
Description

The FPA series carbon filter in 1252 size is often used for chlorine, taste and odour in domestic or light commercial environments

System Specifications FPA-1252CT
Nominal Flow Rate 14.2 lpm (0.85m3/hr)
Media Quantity (Activated Carbon) 25kg
Backwash Flow Rate 28.8 lpm
Backwash Duration 15-30 min
Backwash Discharge Volume 400 - 800L
Pressure Drop in Service Mode 0.5 - 1.0bar
Pressure Drop in Service Mode 0.5 - 1.0 bar
Inlet/Outlet Size 1”NPT
System Dimensions (width x height) 152 x 31cm
Net Weight 50kg
Features
FPA Series Carbon Filters

Carbon filters are excellent for general purification. They are fully capable of reducing undesirable contaminants like Chlorine, Chlorine by-products such as THMs, organic colour, herbicides and pesticides in your water supply, while leaving beneficial minerals behind.

The result is water which tastes and smells fantastic from an easy to use, quiet filter unit which is fully automated for your convenience

FPA Series carbon filters can be used in domestic applications to remove chlorine, taste and odour. They are also highly effective in specialist commercial/industrial applications, such as breweries, other food and beverage production, cafes/restaurants, hydroponics, pharmaceutical production, fish keeping/breeding and as pre-filters to reverse osmosis units which are damaged by the presence of chlorine.

Larger versions are available on request.

Benefits of Carbon Purified Water

Ecomix advanced softening material for problem water, with 6 patents it is effective at reducing:

  • Great Tasting/Smelling Water
  • Water is less drying to skin and hair
  • Can assist with conditions that react to chlorine, like eczema and psoriasis
  • Improved water colour
  • No need to use bottled water
  • Beneficial minerals remain in the water
Operating Specs
Operating Specs
Water Temperature4 - 30°C
Operating Pressure2 - 6bar
Recommended Pre-Filter Rating100 micron
Operating EnvironmentIndoor or Outdoor with additional cover


Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
