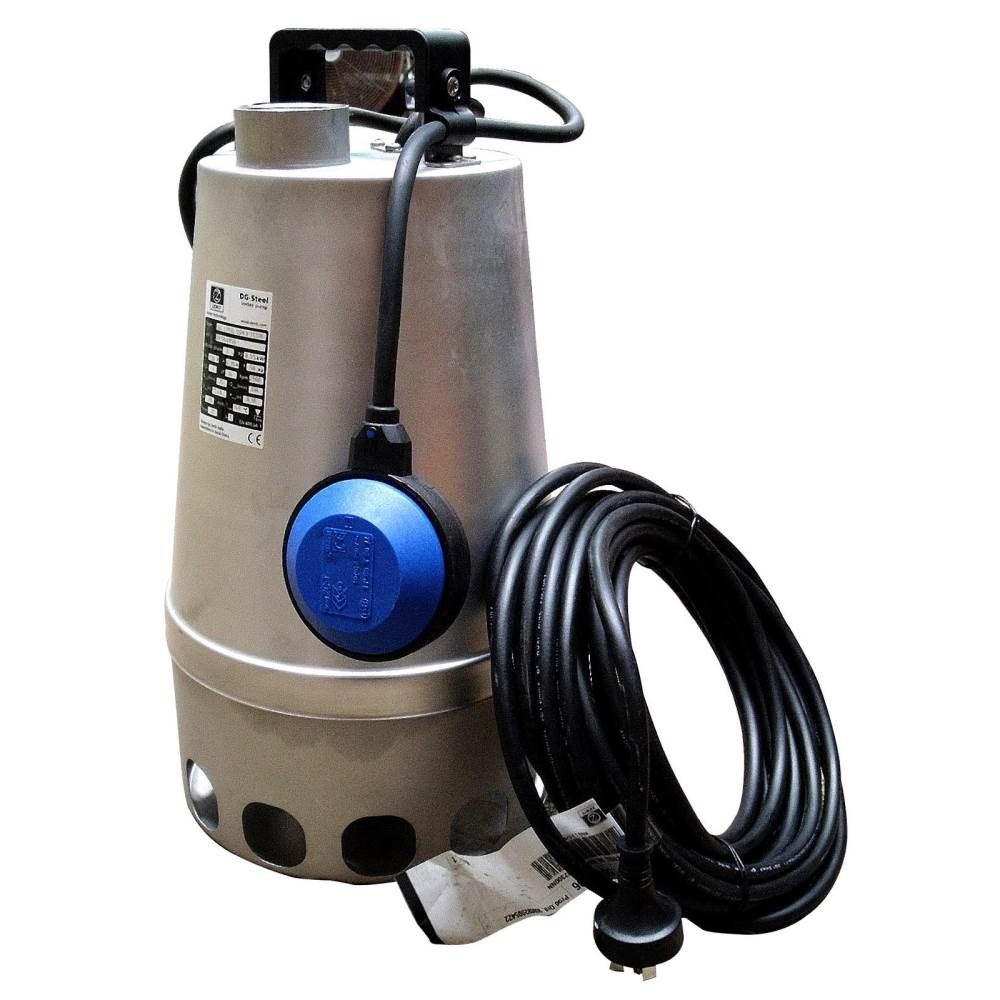

ZEN-DGSTEEL75MA - PUMP SUBMERSIBLE SLIGHTLY DIRTY WATER 360L/M 10M 0.75KW 240V

Code: 711232

Print
Product Code
ZEN-DGSTEEL75MA

Where to Buy

Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Vortex Pump
Bar 1
Suitable For Dirty Water
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 360
Hp 1
Kilo Watts 0.75
Head Range Category a. 0 - 39 m
Max Head (m) 10
Port Size Outlet 1 1/2" BSPF outlet
Powered Electric
Particle Size 38 mm
Volts 240
Warranty (months) 24
Watts 750
Description
ZENIT DG Stainless Steel Vortex Drainage Pumps

Designed for storm water, sewerage plants, livestock farms, car washes, hydro-sanitary applications.

0.75kW, 1.0hp, 240V, automatic, max hd 10m, max flow 360L/m, solids up to 38mm, 1 1/2" BSPF outlet

Warranty

2 Year Zenit Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

Zenit DG Steel Features
.
1. Lifting handle
Chrome-nickel steel AISI 304.
2. Cooling system
As for the internal ricycle pumped liquid system, the motor cooling is guaranted even if the pump is partially covered by the liquid.
3. Mechanical seal
Three mechanical seals; double seal (SiC-Al) in oil sump with food-grade oil lubrication, one V-ring in direct contact with the liquid.
4. Strainer
Chrome-nickel steel AISI 304 Max free passage 40 mm.
5. Impeller
Chrome-nickel steel AISI 304.
