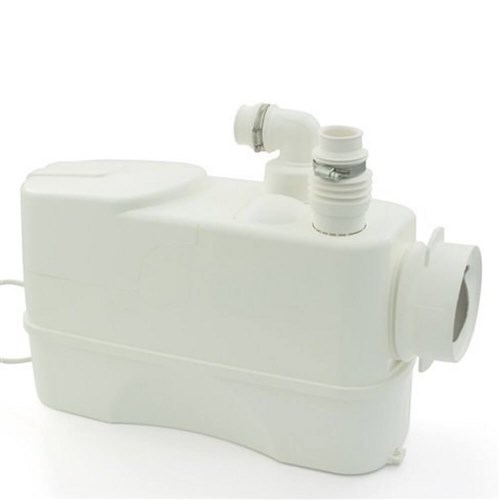

DAB-GENIX-WL110 - DAB Macerator Automatic Lifting Station

Code: 807406

Print
Product Code
DAB-GENIX-WL110

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Suitable For Sewage Water
Max Flow (L/min) 115 L/min
Head (max) 8 m
Water Resistant IP44
Description
AUTOMATIC COLLECTION AND LIFTING STATIONS

0.32 kW, 240V
Features

GENIX is the new DAB macerator, designed to provide the maximum level of efficiency in the 3 main moments of its lifecycle.

Quick installation, comfort in utilization and simplified maintenance make GENIX the new benchmark in the setup of a bathroom ..where you never thought it was possible.

GENIX is indispensable when the wastewater coming from toilets, showers, sinks and cannot be expelled by gravity. These lifting stations can be installed wherever there is the wish to add a toilet during new installations, renovations or new constructions.

GENIX is provided with everything you need for a quick and easy installation. Fittings with non-return valves integrated, hose clamps, hose adaptors, ground-fixing screws, anti-vibration rubber nubs, and illustrated quick guide.


APPLICATIONS

Its use is needful whenever the wastewater coming from the WC, the shower, the washbasin or the bidet cannot be expelled by gravity. GENIX models normally have a front WC connection. The difference in the GENIX WL is the side WC connection, specifically designed for WC wall-mounted installations or where there is no room enough behind the WC. In the model 130, beside the WC, three more lines can be connected, such as shower, washbasin and bidet. The models offered stand out for silent running, even more improved in the Comfort version. The pump, powerful and reliable, and the grinding system, with blades in nickel plated stainless steel, make together a long lasting and basically daily maintenance-free product. Extremely easy the maintenance in case of clog or screws, and with the unique discharge tap that will allow a clean, and free of problems, maintenance. In case of blockage, there is the possibility to dismount the motor subassembly only operating on two screws accessed from the outside, with no need to remove the product. Extraordinary maintenance will be extremely easy, clean and without issues. The installation kit comes with easy-connect fittings adaptable to various pipe sections and including built-in non-return valves Available, as accessories, an acoustic alarm anti-flooding and an adaptor pipe, to adapt the GENIX to a vast majority of existing installations.

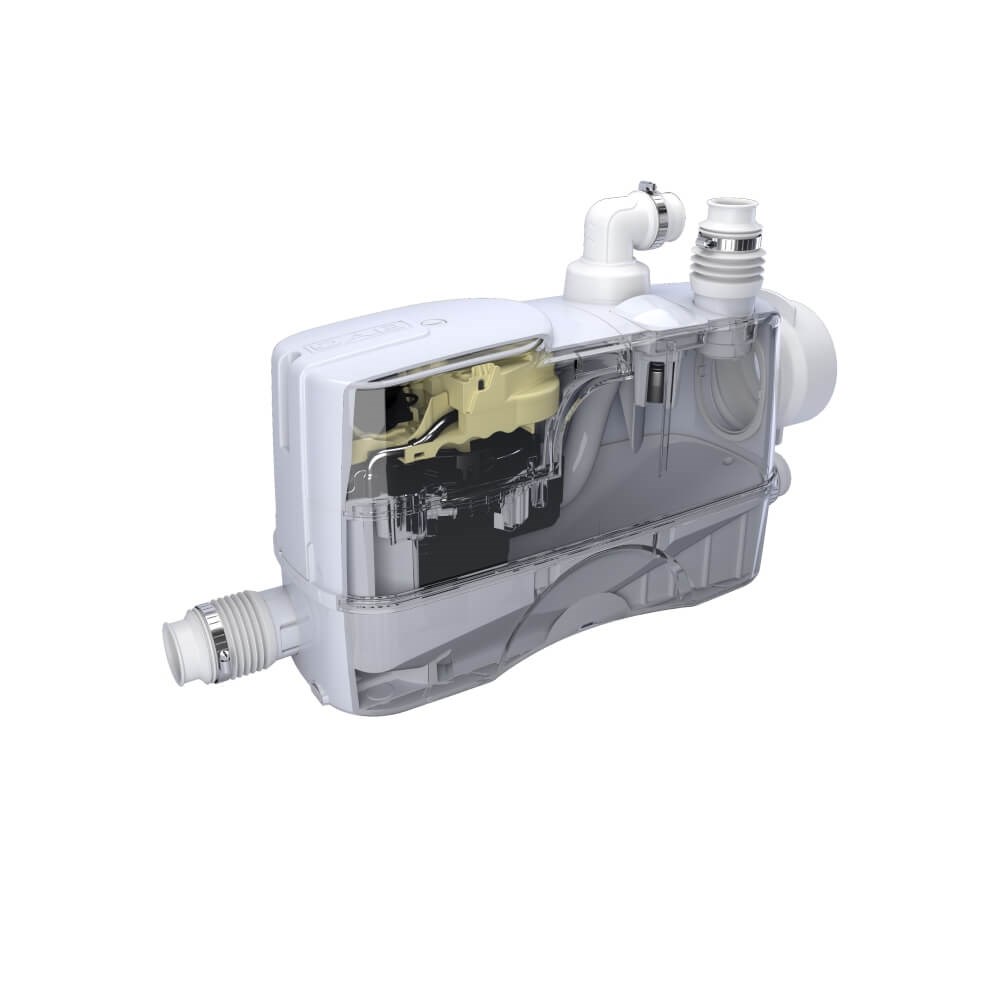

CONSTRUCTION FEATURES OF THE PUMP
  • 30 % barium loaded polypropylene tank. For the sound proofed version, 70 % barium loaded polypropylene sound proofer. 30 % fibre glass PPO impeller.
  • Stainless steel motor shaft.
  • Nickel plated stainless steel grinder.


CONSTRUCTION FEATURES OF THE MOTOR
  • Asynchronous, made of stainless steel. Stainless steel shaft and cover.
  • Thermal overheating protection.
  • Wear-resistant motor shaft.
