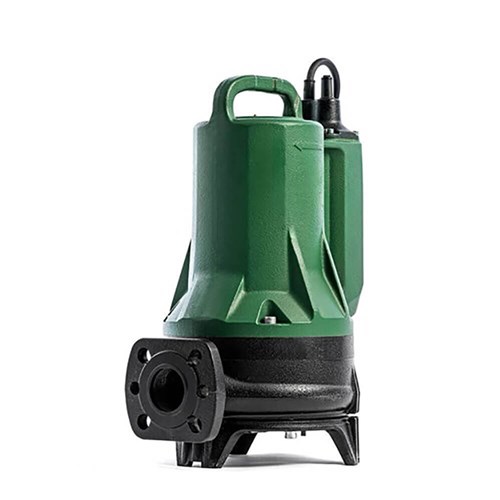

DAB-GRINDERFX15.11M - Grinder Submersible Pump 320 L/M 24.9MM 1.1KW 240V

Code: 810204

Print
Product Code
DAB-GRINDER FX 15.11 M

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Bar 2.4
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 320
Kilo Watts 1.1
Head Range Category a. 0 - 39 m
Max Head (m) 24.9
Port Size Outlet RP1-1/2" - DN32PN10/6, DN40PN6
Volts 240
Description

Grinder Pump

Max head 24.9m, max flow 320 L/m, 1-1/2"BSPF

Features

  • High resistance stainless steel grinder system
  • Suitable for the transfer of sewage water at high pressure or when narrow piping is needed to keep down system installation costs
  • Single-phase versions with starter and capacitor in a separate panel
  • Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid direct contact with the pumped liquid.
  • Motor shaft in anticorrosion stainless steel AISI 304
  • External cataphoresis and two component coating for corrosion resistance
  • Resin sealed cable gland
  • Compliant with waste water standards EN 12050
  • Pump body and impeller in cast iron, shredder in AISI 630
  • Threaded and flanged outlet

Warranty

2 Year Pump Parts and Labour Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.01
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
