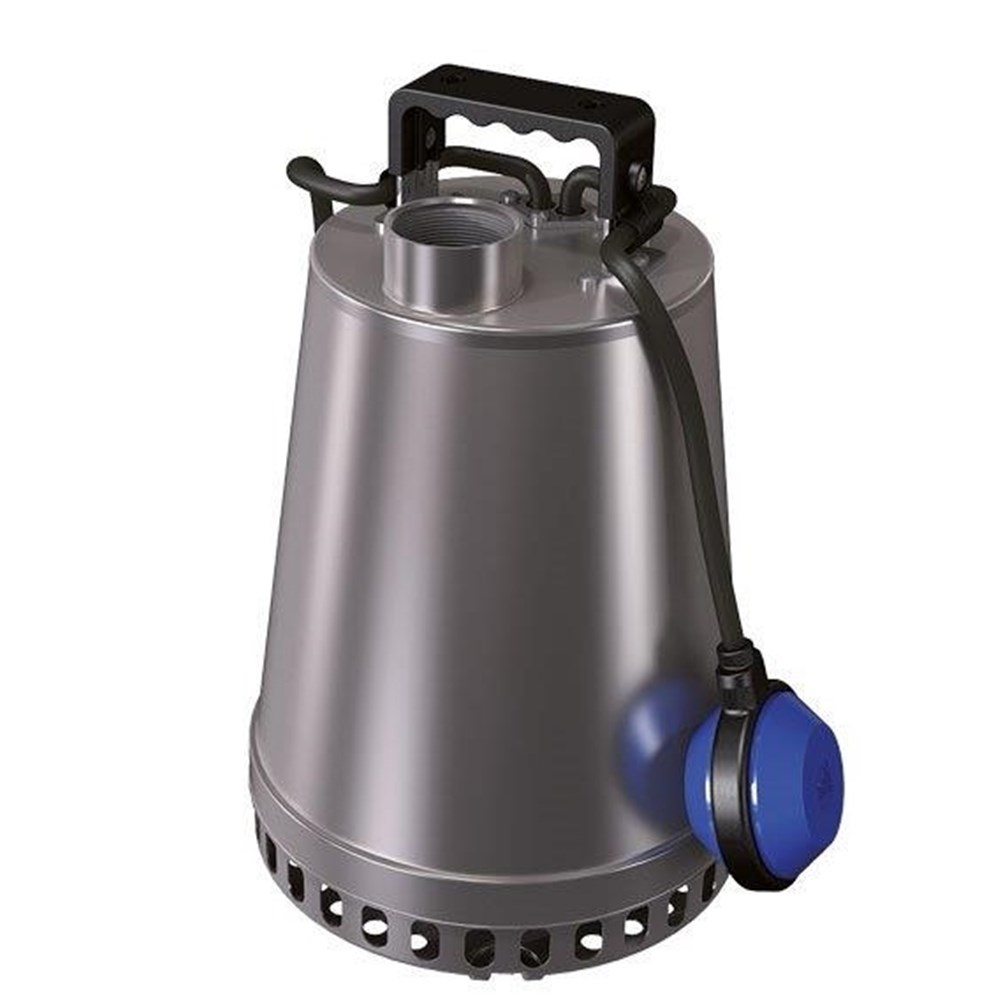

ZEN-DRSTEEL37MA - PUMP SUBMERSIBLE SLIGHTLY DIRTY WATER 180L/M 13.6M 0.37KW 240V

Code: 711352

Print
Product Code
ZEN-DRSTEEL37MA

Where to Buy

Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 1.36
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 150
Hp 0.5
Kilo Watts 0.37
Head Range Category a. 0 - 39 m
Max Head (m) 13.6
Port Size Outlet 1 1/4" BSPF outlet
Particle Size 10 mm
Volts 240
Watts 370
Description
ZENIT DR Stainless Steel Drainage

Designed for stormwater dewatering, or water from ponds and pits and for rainwater collection.

0.37kW, 0.5hp, 240V, max hd 13.6m, max flow 150L/m, solids up to 10mm, 1 1/4” BSPF outlet

Warranty

2 Year Zenit Warranty


Zenit DR-Steel Features
.
1. Lifting handle
Chrome-nickel steel AISI 304.
2. Cooling system
As for the internal ricycle pumped liquid system, the motor cooling is guaranted even if the pump is partially covered by the liquid.
3. Mechanical seal
Three mechanical seals; double seal (SiC-Al) in oil sump with food-grade oil lubrication, one V-ring in direct contact with the liquid.
4. Strainer
A special set allows the sewage pump to be transformed into a dry floor one. The minimum level of liquid can be lowered to 5 mm from the ground by setting two special shimming.
5. Impeller
Chrome-nickel steel AISI 304.
