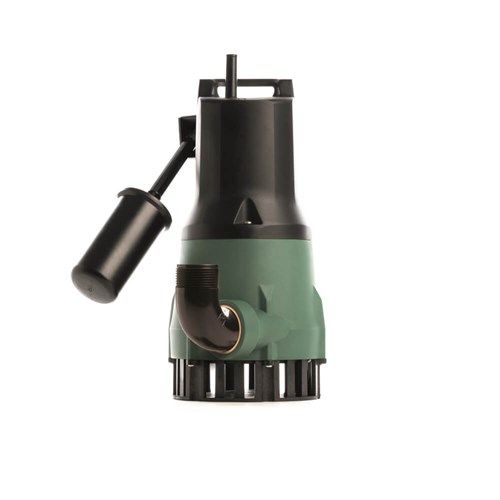

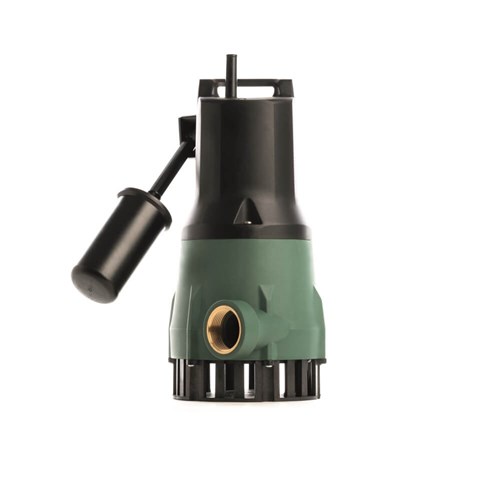

DAB-NOVA600A - Submersible Wastewater Pump with Float - 250L/min 10.5m 0.55kW 240V

Code: 701753

Print
Product Code
DAB-NOVA600A

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Bar 1.05
Flow Range Category c. 200 - 299 L/min
Flow Rate (L/min) 250
Float Yes
Hp 0.75
Kilo Watts 0.55
Head Range Category a. 0 - 39 m
Max Head (m) 10.5
Port Size Outlet 1 1/4" BSPF outlet
Volts 240
Watts 550
Description
Submersible Drainage Pumps

Suitable for all dewatering tasks including pumping out sumps, flooded areas and drawing water from wells.

0.55kW, 0.75hp, 240V, AUTOMATIC, max hd 10.5m, max flow 250L/m, rigid float arm, 1¼" BSPF outlet.

2 Year DAB Pumps Warranty
Features

The NOVA line with open impeller is suited to all clean and waste water with solids measuring up to 10 mm.
It can be used to empty tanks, vats or cisterns, drain flooded basements, cellars and garages, and prevent flooding when installed in rainwater wells.
It can also be used as a portable pump in emergencies to drain water out of flooded rooms.

OPERATING RANGE

Flow rate up to 16 m3/h
with head up to 10.2 metres

LIQUID TEMPERATURE RANGE

from 0 °C to +35 °C for domestic use
from 0 °C to +50 °C for other uses

OUTPUT

1” ¼ F

Technical Data
ModelP2 (KWH Max (m)Q Max (L/min)Free Passage
NOVA 1800.205805mm
NOVA 2000.226.12005mm
NOVA 3000.226.820010mm
NOVA 6000.5510.525010mm
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
