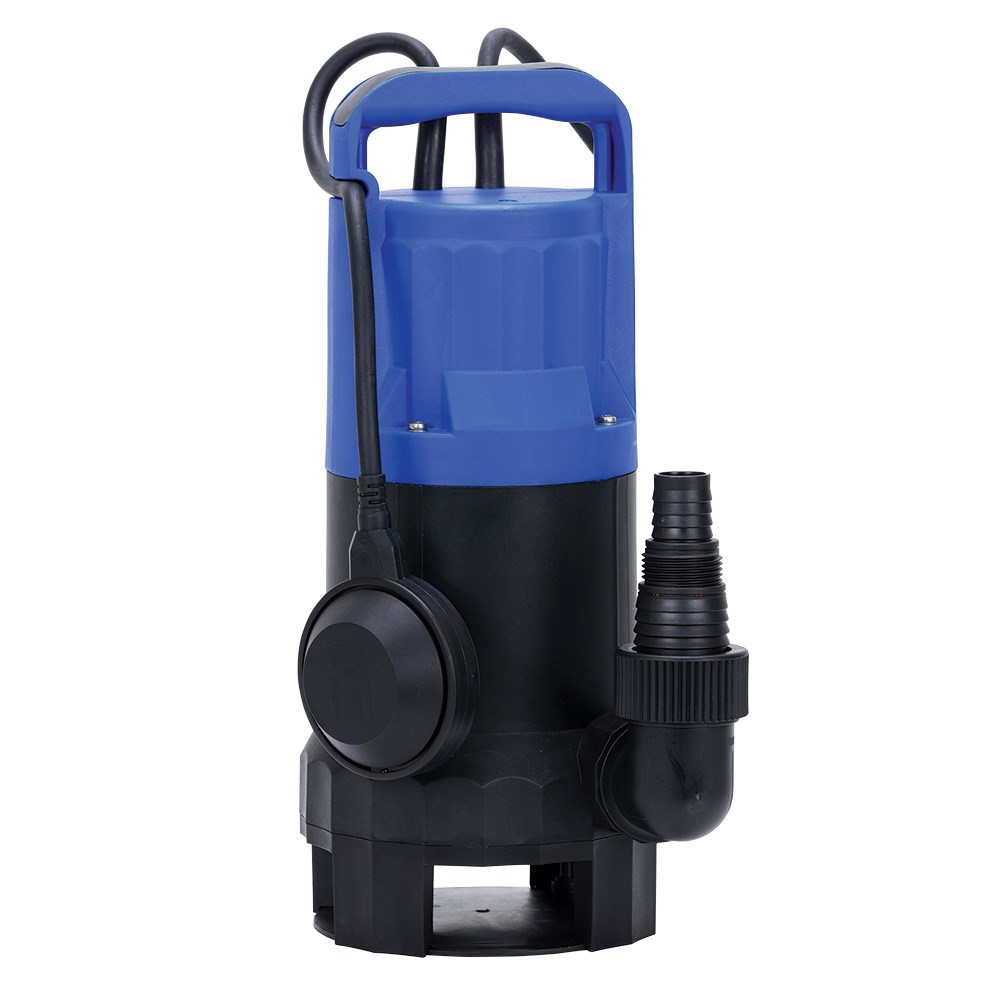

The Bianco SUB550 is a light duty, occasional use vortex style pump
The generous internal clearances enable this pump to cope with lightly contaminated water containing soft solids such as leaves or other non-abrasive organic materials
If you have a general de-watering task, the SUB550 is a great choice
Benefits:
- Light and compact - easy to use
- Great value pump for light duties and occasional use
- Automatic operation controlled by a fl exible fl oat
Features:
- Quality pump materials and construction to ensure reliable operation
- Multi-fi t hose tail
Cautions
- Not intended for continuous operation such as water features
- Not suitable for potable water applications
- Not suitable for use with biological wastewater

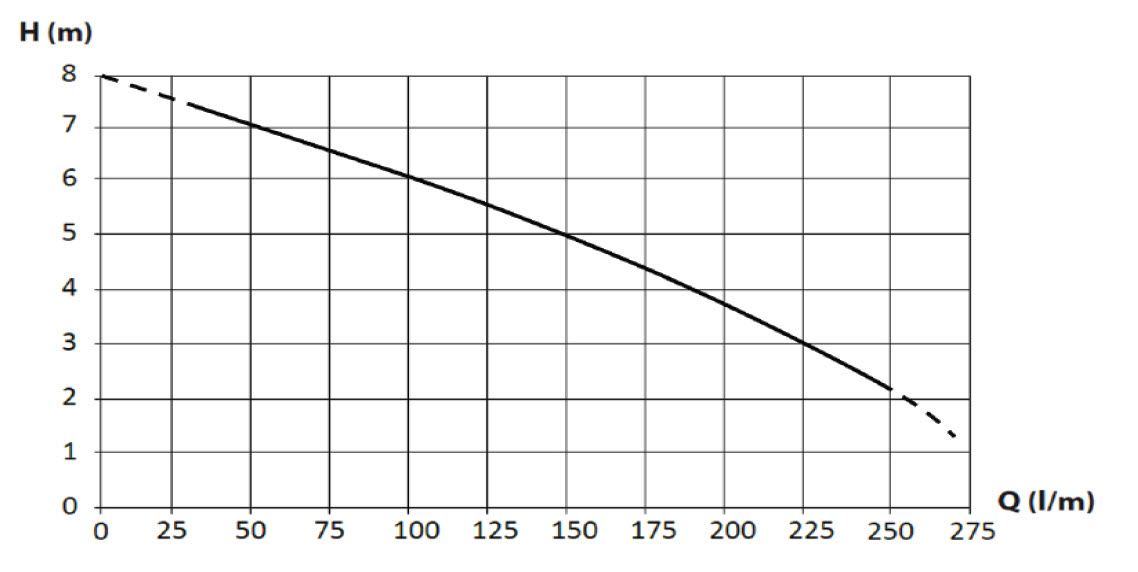

Hydraulic Performance
| Technical Data |
| RATED POWER (W) |
550W |
| MAX. FLOW [LPM] |
265 lpm |
| RATED FLOW [M3/H] |
8 m3/h |
| MAX. HEAD [M] ` |
8m |
| WORKING TEMPERATURE |
< 40°C |
| LIQUID TEMPERATURE |
2°C - 35°C |
| MAX. IMMERSION DEPTH |
3m |
| MAX. DIA. OF PARTICLE |
< 35mm |
| MOTOR DUTY |
Continuous S1 |
| MOTOR PROTECTION LEVEL |
Class F |
| MOTOR PROTECTION |
Auto resetting thermal overload |
| CAPACITOR |
10uF |
| MOTOR SHAFT |
304 Grade S/S |
| RATED VOLTAGE |
220V-240V 50 Hz |
| RATED CURRENT |
2.7 A @ 230V |
| POWER CABLE |
TYPE XX |
| LENGTH OF POWER CABLE |
10m |
| PROTECTION CLASS |
IPX8 |
| IMPELLERS |
1 of Glass reinforced (25%) Nylon |
| HYDRAULIC BODY |
Glass reinforced (30%) Polypropylene |
| INLET STRAINER |
Open |
| OUTLET |
1½” BSP |
| SEALS |
Lip seal |
| AUTOMATION FUNCTION |
Flexible Float Mechanism |
| NET WEIGHT (KG) |
Pump only 4.9kg |
| PACKAGE DIMENSION |
200 L x 165 W x 385 H (mm) |
