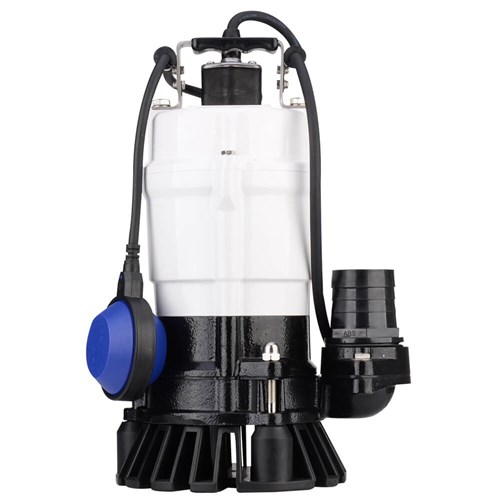

BIA-HSA500 - HS Series Submersible Commercial Construction Auto Pump with Float 12m Max Head 0.5kW

Code: 808479

Print
Product Code
BIA HSA500

Where to Buy

Find Your Nearest Store
Technical Specifications
Product Type Light Construction Pump
Brand Bianco Pumpz
Suitable For Construction Sites Stormwater
Bar 1.2 Bar
Flow Range Category c. 200 - 299 L/min
Flow Rate (L/min) 210 L/min
Float Float Included
Hp 0.5 Hp
kPa 120 kPa
Kilo Watts 0.4 kW
Head Range Category a. 0 - 39 m
Head (max) 12 m
Port Size Outlet 2" BSPF outlet
Powered Electric
Particle Size 10 mm
Volts 240 V
Warranty (months) 12 Months
Watts 400 W
Description
Bianco Submersible Drainage Pump

0.5kW, 50Hz, 240V, 12m Max Head, 210 L/min, IP68, 2" Pipe Connection Discharge
Features

Designed for de-watering of construction sites, pits, storm water and basements where there is abrasive material.

Features:

  • Industrial grade coating
  • Stainless Steel Handle
  • Easy service round style float
  • Corrosion resistant pump components
  • Automatic and manual operations available
  • Dual mechanical seal in oil bath, silicon carbide/silicon carbide + carbon ceramic
  • Fitted with semi-vortex, urethane coated impeller which allows pumping of suspended solids, sandy and stringy material
  • Agitator on the end of the pump shaft helps prevent air locking and clogging
  • Versatile outlet connection
  • 240V single phase motor with in-built auto reset thermal overload
  • 10m of power cable (H07RNF)
  • Urethane strainer resists damage
  • Can handle particles to 25mm x 10mm
  • Water temperature range: 2ºC to 35ºC
  • Maximum submergence: 20m
