Code: 701388

Product Code

Where to Buy

Find Your Nearest Store
Technical Specifications
Product Type Multistage Jet Pump
Brand DAB Pumps
Suitable For Tank Transfer
Bar 6.1 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 75 L/min
Hp 1.5 Hp
kPa 618 kPa
Kilo Watts 1.1 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Head (max) 61 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 1100 W

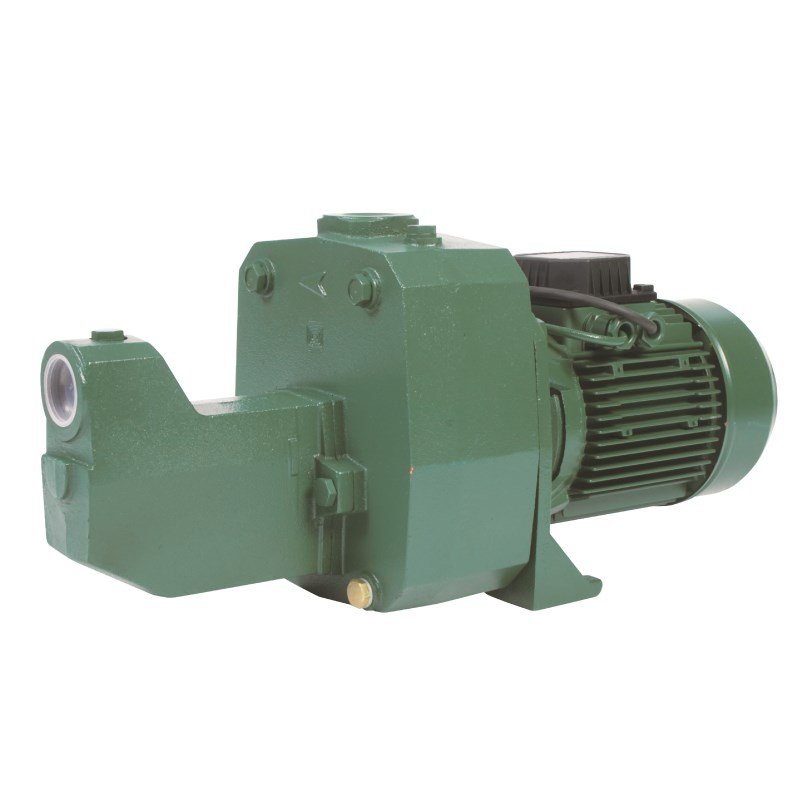

Self Priming Multistage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1" BSPF Out


2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
