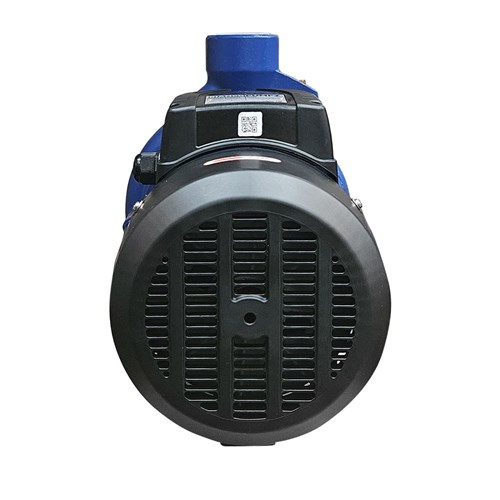

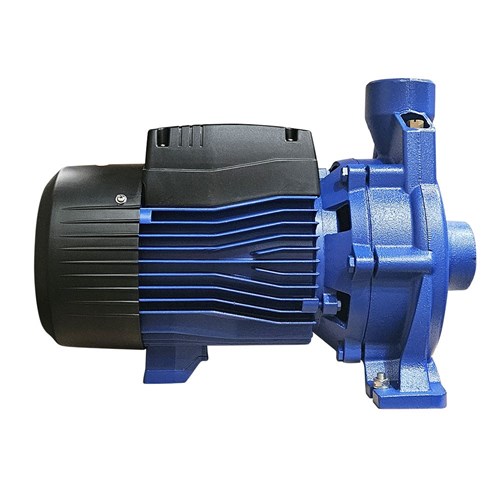

BIA-FC750T CAST IRON CENTRIFUGAL PUMP CLEAN WATER 900L/MIN 56.5M 7500W 415V

Code: 802810

Print
Product Code
BIA-FC750T

Where to Buy

Find Your Nearest Store
Product Documents
Technical Specifications
Brand Bianco Pumpz
Product Type Single Stage Cast Iron Centrifugal Pump
Bar 5.65
Suitable For Clean Water
Amps 16.5
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 900
Hp 10
Kilo Watts 7.5
Head Range Category b. 40 - 59 m
Max Head (m) 56.5
Port Size Inlet 2" Inlet
Port Size Outlet 2" Outlet
Powered Electric
Volts 415
Warranty (months) 24
Description
Centrifugal Pump

Cataphoresis coating, stainless steel impeller.

7.5kW, 10hp, 415V, max hd 56m, max flow 900L/m.
Ports 2” BSPF In, 2” BSPF Out.

2 Year BIANCO Pumpz Warranty
