DAB-ESYTANK - Drinking Water Storage Tank 480L

Code: 805121

Print
Product Code
DAB-ESYTANK

Where to Buy

Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Litres 480
Description

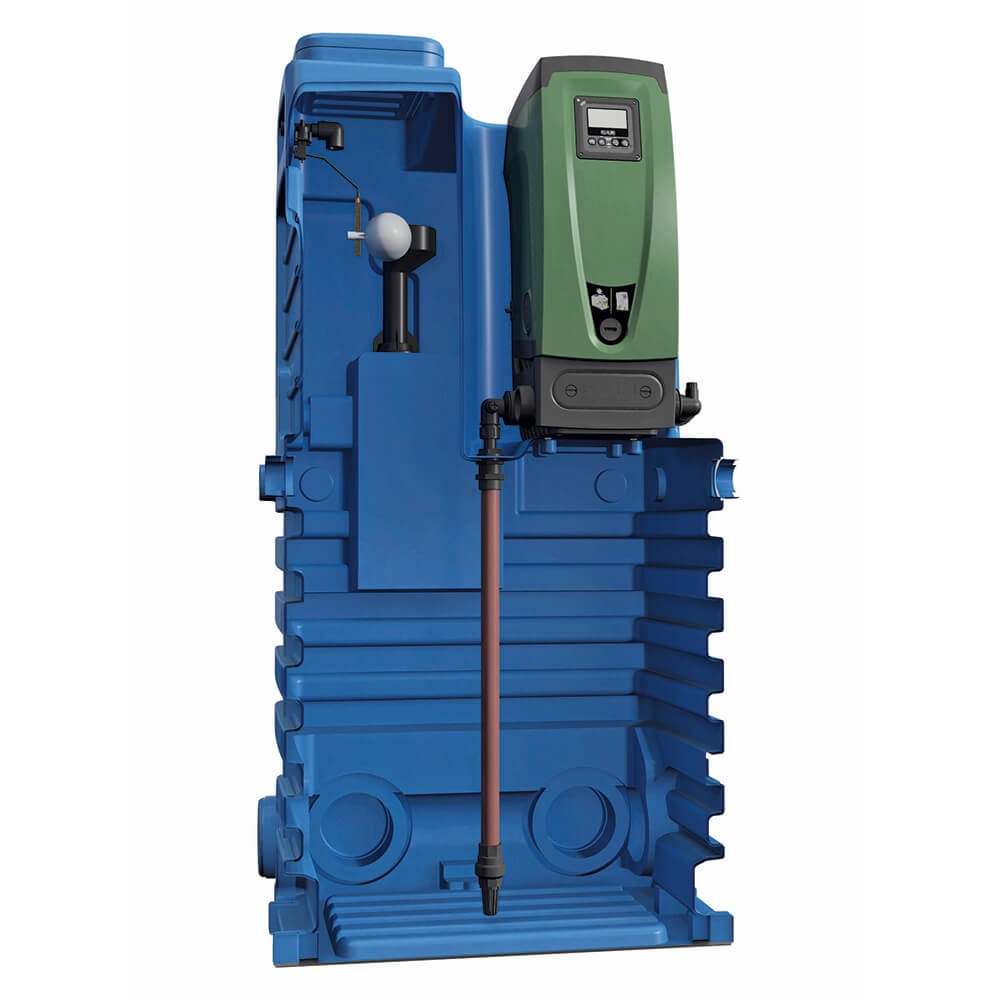

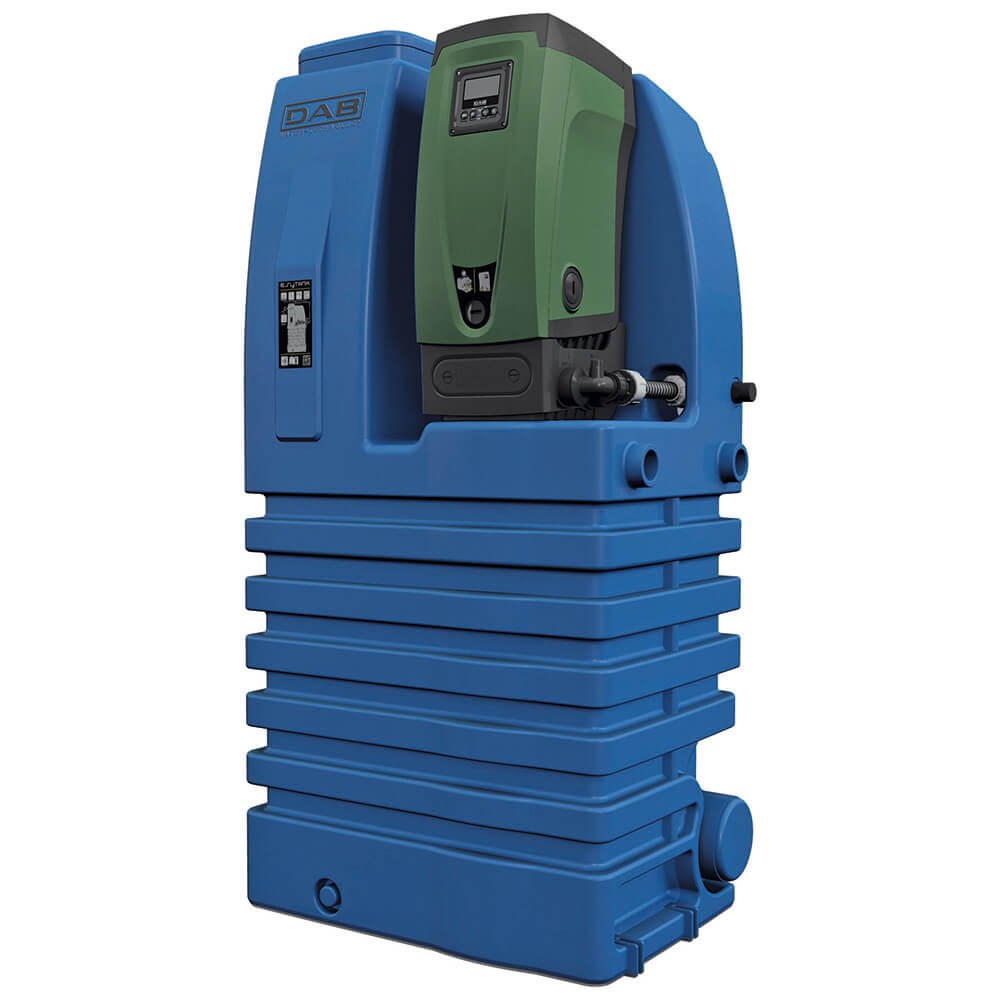

E.SYTANK is designed as a break tank between mains and E.SYBOX. It has a net capacity of 480 litres and is suitable for drinking water. It has a valve for filling from the mains with a float and an overflow system. The tank is complete with an E.SYDOCK, a suction pipe with footvalve, and a delivery pipe.

Pump sold separately

Features

Used where direct connection to incoming water mains is not legal or input flow is lower than pump output.

Maximum liquid temperature: 40°C
Maximum environment temperature: 50°C
Maximum capacity: 480 litres
Dimensions of mains water inlet pipe: ¾”
Dimensions of delivery pipe: 1”
Dimensions of overflow pipe connection: 2”
Dimensions of front discharge (not drilled): 1-1/4”
Dimensions of discharge lower discharge (not drilled): DN20

NoITEMS MATERIALS
1480 LITRE TANKLINEAR HIGH-DENSITY POLYETHYLENE. HDPE
2INSPECTION COVERLINER LOW-DENSITY POLYETHYLENE. LDPE
3SERVO-CONTROLLED FLOAT VALVE(NYLON) PA 66 GLASS FIBRE REINFORCED, STAINLESS STEEL, EPDM, PPH, BRASS CW508L
4OVERFLOWPP POLYPROPYLENE 30% GLASS FIBRE
5SUCTION PIPE WITH FOOT VALVEPOLYPROPYLENE HOMOPOLYMER, POM
6DELIVERY PIPEPOLYPROPYLENE HOMOPOLYMER
7AUXILIARY DELIVERY PIPEPOLYPROPYLENE HOMOPOLYMER
8E.SYDOCKNYLON 30% FV, PP 30% FV, NBR
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
E.SYAPP

e.syapp is the new DAB mobile application for the line of electronic booster sets that redefine the rules of residential water pressurisation: e.syline!

e.syapp allows you to:

  • Choose the ideal e.syline product for your application.
  • Easily calculate cost-savings on your electricity bill
  • Instant access to installation videos, catalogs, quick guides, data sheets and instruction manuals.



Get it on Google Play
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
