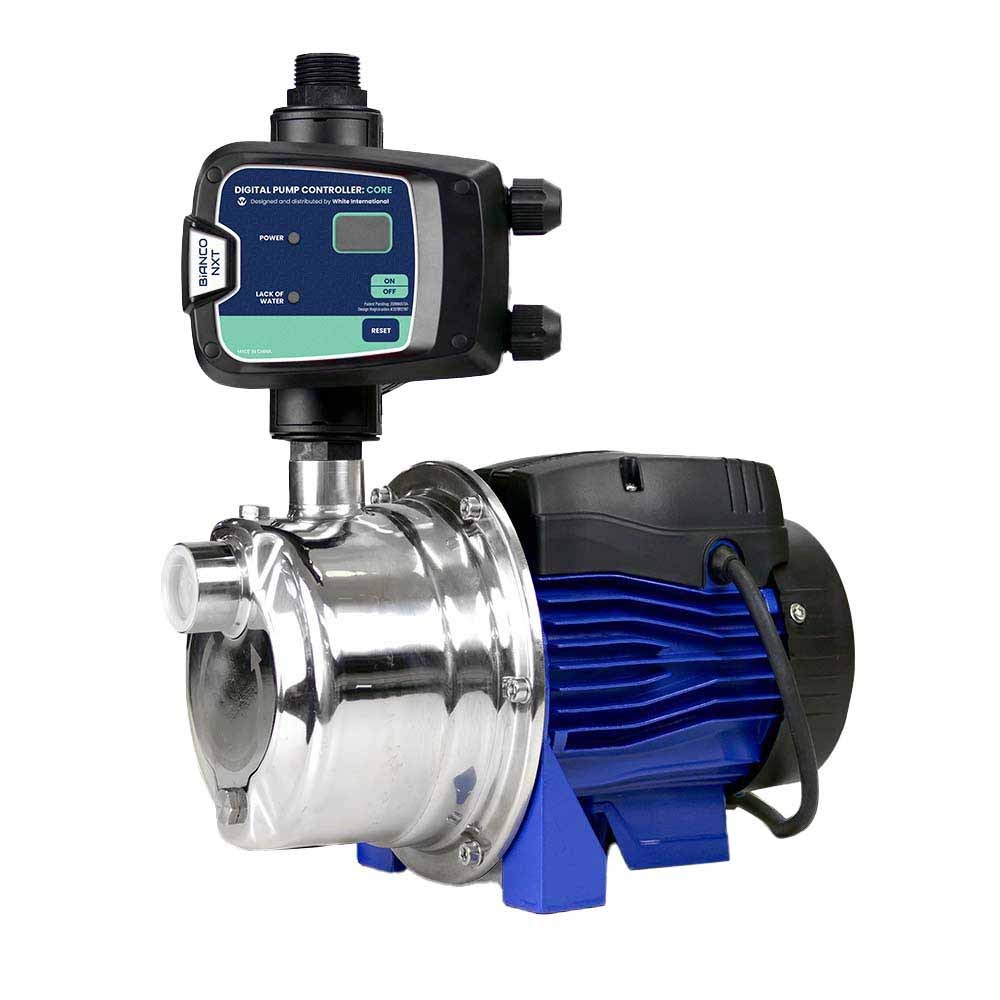

BIA-INOX90S2NXT - Stainless Steel Surface Mount Pump with nXt Controller 50m 0.9kW 240V

Code: 808395

Print
Product Code
BIA INOX90S2NXT

Where to Buy

Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Bianco Pumpz
Product Type Pressure System
Bar 4.9
Suitable For Clean Water
Approval Drinking Water Approval
Amps 6
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 78
Float No
Hp 1
kPa 489
Kilo Watts 0.9
Max Flow (L/min) 78
Head Range Category b. 40 - 59 m
Max Head (m) 50
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 7
Volts 240
Warranty (months) 24
Watts 750
Description
Bianco Stainless Steel Surface Mounted - Jet Pump with nXt Intelligent 1 mode controller

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

0.9kW, 1.0hp, 240V, max hd 50m max flow 78L/m, 7 taps
Ports 1" BSPF In, 1" BSPM Out

2 Year Bianco Pumps Warranty
Controller

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.



Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Flow Curve


nXt Controller Data
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) -
1 ¼” Union Kit
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
