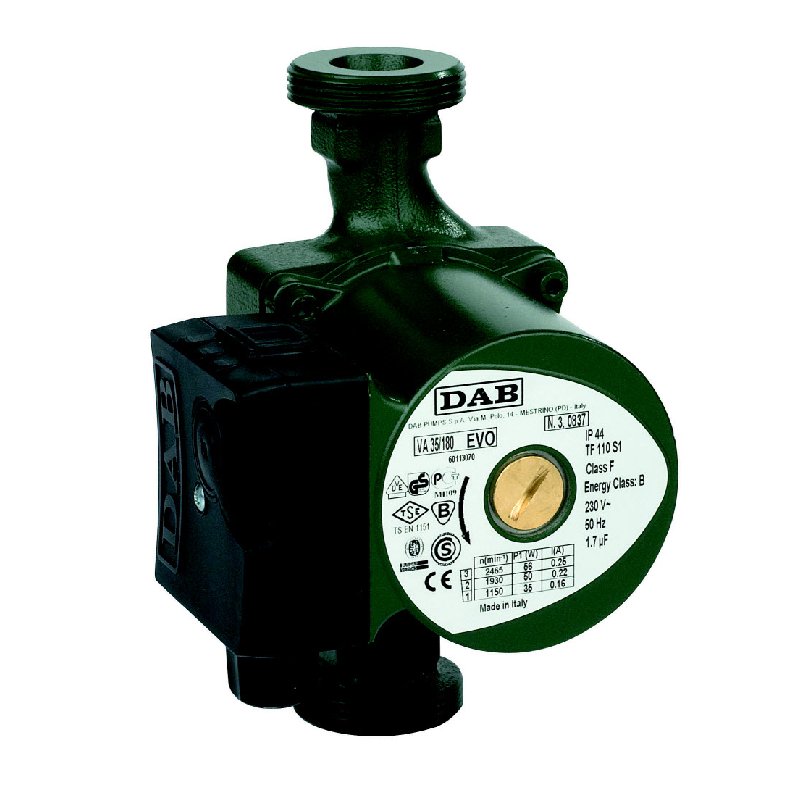

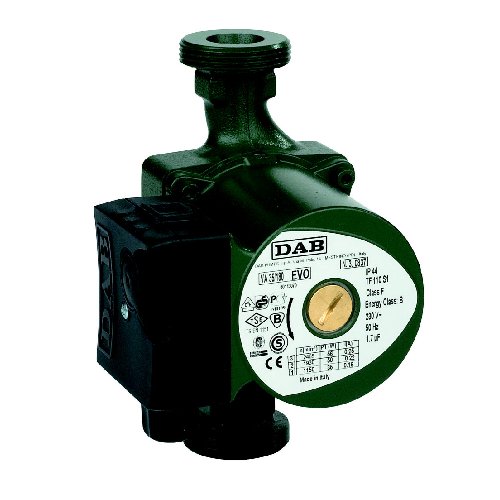

DAB-VA35-130 - PUMP CIRCULATOR DOMESTIC 50L/MIN 4.3M 56W 240V CAST IRON HOT WATER

Code: 702734

Print
Product Code
DAB-VA35-130

Where to Buy

Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 0.43
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 50
Head Range Category a. 0 - 39 m
Max Head (m) 4.3
Port Size Outlet 1 1/2" BSPM outlet
Volts 240
Watts 56
Description
Cast Iron Domestic Circulator Pump

Pumps with cast iron body for hot water circulation in domestic systems including solar hot water and under floor heating systems. IP44 3 Speed. Maximum operating temperature 110oC.
Order unions separately.

56W, 240V, max hd 4.3m, max flow 50L/m. 1 1/2" BSPM outlet 130mm centre distance

Warranty

2 Year DAB Pumps Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
