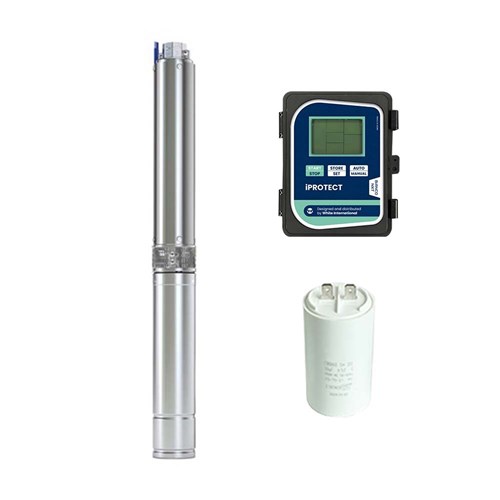

DAB-S41-10MOL - Pump Borehole 4" Complete PSC 25L/Min 64M 0.37kW 240V

Code: 808226

Print
Product Code
DAB-S41-10MOL

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Bar 6.3
Flow Range Category a. 0 - 99 L/min
Kilo Watts 0.37
Max Flow (L/min) 25
Head Range Category c. 60 - 99 m
Max Head (m) 64
Port Size Outlet 1 1/4" BSPF outlet
Volts 240
Description
SS OIL FILLED

Max head 64m, max flow 25L/m, 1 1/4” BSPF

Features
Complete Systems with Oil Filled Motor
    • 4” Bore Hole Submersible Pumps
    • Includes cable joint kit and control box for all single phase pumps
    • DAB Borehole submersible pumps incorporate the latest technology in hydraulic design and materials to reduce running costs, extend pump life and increase serviceability
    • Technopolymer impellers and diffusers for resistance to wear and corrosion
    • New impeller design has higher resistance to abrasion
    • Micro Cast stainless steel support and valve body for high strength
    • Single phase motors feature remote control box with manual reset overload
    • Large range to suit most applications
    • Floating impeller stack for easier starts in abrasive conditions
    • Posidrive pump shaft improves impeller life in adverse conditions
    • Maximum quantity of sand = 150 gm/m3

    Warranty

    2 Year Pump Parts and Labour Warranty

    Downloads
    Product Information and Data Sheets
    Download Product Information & Data Sheets v1.0
    Operation and Installation Manuals
    Download Operation & Installation Manuals v1.0
