BIA-ISUBS48-8M - Borehole VFD Kit 180L/Minin 50M 1500W 240V

Code: 808336

Print
Product Code
BIA ISUBS48 8M

Where to Buy

Find Your Nearest Store
Technical Specifications
Brand Bianco iCON
Bar 4.9
Flow Range Category b. 100 - 199 L/min
Kilo Watts 1.5
Max Flow (L/min) 180
Head Range Category b. 40 - 59 m
Max Head (m) 50
Port Size Outlet 2" BSPF outlet
Volts 240
Description

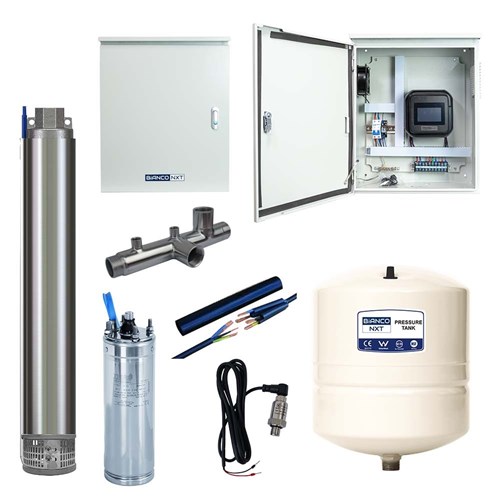

The iSUB22 device supplied with BIA-ISUBS48-8M is an innovative 240V single phase input built-in variable speed control system housed in a weather proof fan ventilated enclosure and incorporates a manifold with pressure gauge and pressure transducer for easy installation. Also included is a Bianco 18 litre pressure tank and DAB S4 series borehole pump supplied with a 1.5 kW 240V three phase motor.

  • Greater comfort due to constant pressure
  • Optimises pump flow while minimising energy consumption
  • Elimination of overpressures
  • Greater life of electric pump
  • Easy installation
  • Dry run protection
  • Minimum speed selection
  • Various supply fault alarms including high pressure, low pressure, low level, transducer error
  • As many as 22 types of fault protection including over and under voltage, over current, etc.

DAB Pump Features
  • 4” Bore Hole Submersible Pumps
  • Solar Powered with 240V back up possible
  • Brushless DC motor with MPPT for efficient operation
  • Technopolymer impellers and diffusers for resistance to wear and corrosion
  • New impeller design has higher resistance to abrasion
  • Micro Cast stainless steel support and valve body for high strength
  • Large range to suit most applications
  • Floating impeller stack for easier starts in abrasive conditions
  • Posidrive pump shaft improves impeller life in adverse conditions
Pressure Tank Description

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 18L
  • Nominal Draw-off: 6L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 279 mm
  • Height: 375mm
  • Net Weight: 3.4Kg
  • System Connection: GI
  • Colour: Almond
