BIA-VMS-SOLAR-1/130-FLEXI22 - VMS Solar Kits

Code: 812564

Print
Product Code
BIA-VMS-SOLAR-1/130-FLEXI22
Find Your Nearest Store
Description

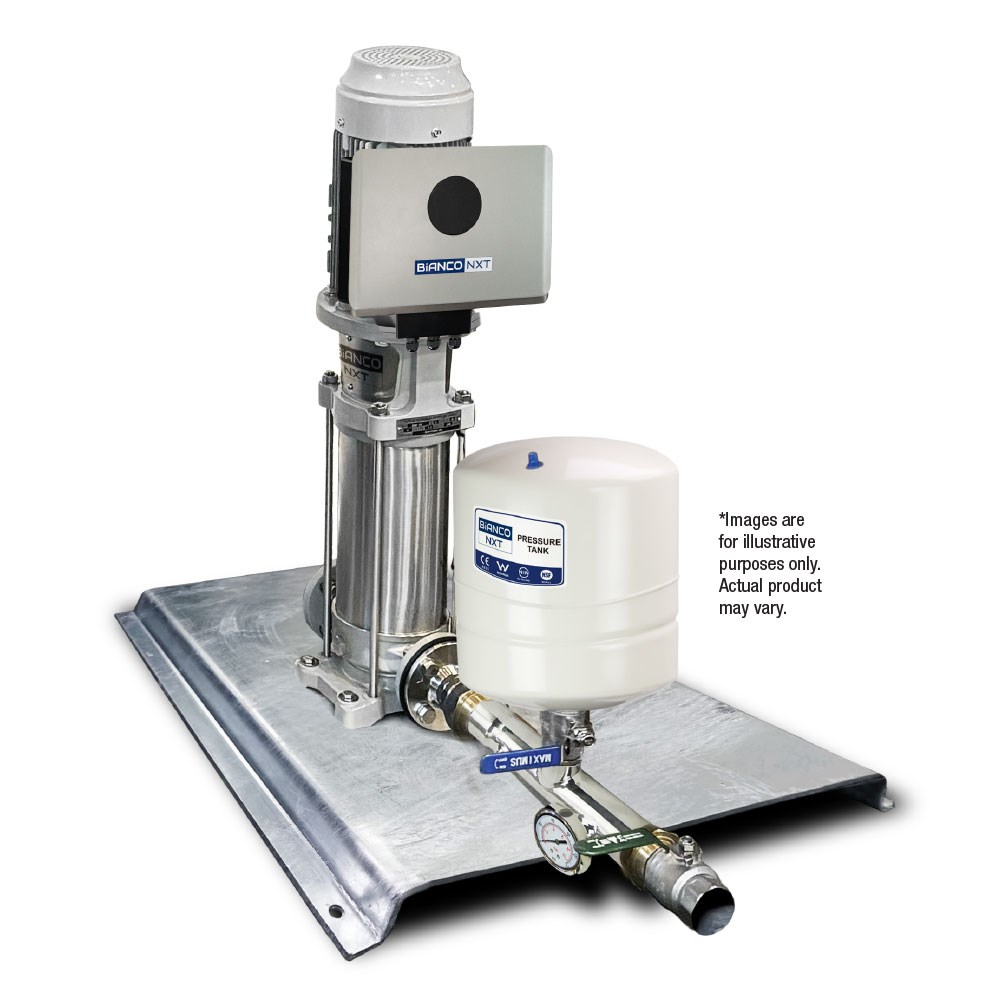

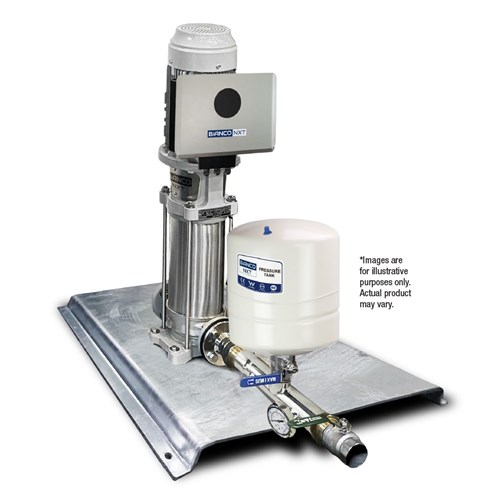

Bianco NXT Summit Series Flexi-Solar Sets are an all-in-one solution that can harness the power of both DC and AC input with Variable Frequency control and advanced protection. Perfect for off-grid applications or reducing energy costs, Flexi-Solar kits unlock a world of versatile and efficient pumping solutions

Features:

  • Enhanced energy efficiency
  • Robust construction for longevity
  • Compact design for easy installation achieved by having a horizontal line installation with the same size inlet and outlet connection
  • Quiet operation
  • Made from high quality materials; pump body, shaft and impeller made from 304 stainless steel, mechanical seal made from graphite/S-IC
  • The removable coupling design allows for the convenient replacement of the motor without dismantling the pump from the pipeline
  • Designed for working conditions between -20 ºC to +120 ºC up to 25 bar pressure
  • Bearings lubricated with the pumped water
  • Motor fitted with a totally enclosed, fan-cooled 2 pole motor
  • IP55 rating
Features

NXT FLEXI-SOLAR

The Bianco nXt Flexi-Solar pump controller is a variable speed drive designed for three-phase asynchronous motors and permanent magnet synchronous motors. The controller provides motor soft-start, speed control, fault detection and motor protection.

The incoming power source can be DC, AC or a combination of both.

High-voltage DC power from a solar array is converted into AC power to drive the pump. When the solar energy drops, the controller can automatically switch to a backup AC power source, such as generator or battery storage

Features:

  • Optimised pump performance - Solar Maximum Power Point Tracking (MPPT)
  • Soft start, low motor start current.
  • Multi-pump control. 1 master and up to 5 auxiliary controllers

In-built Pump Protections

The controller monitors the system and automatically shuts down when:

  • The source water level is low
  • The destination is full and further water is not required
  • The pump is blocked or overloading.
  • High voltage surge
  • Low voltage input
  • Motor phase loss
  • Short circuit
  • Controller internal over-temp
