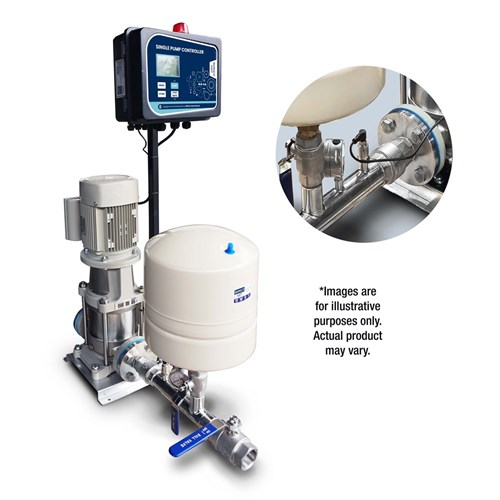

BIA-1VMS5/7M-MP - VMS Manual Pressure Switch Kit

Code: 812324

Print
Product Code
BIA-1VMS5/7M-TRAN
Find Your Nearest Store
Product Documents
Description

BiANCO NXT Summit Series Pressure Transducer Controlled units are an all-in-one solution offering a professional quality range of vertical multistage pumps, engineered for exceptional efficiency, durability and dependable performance. Operation is controlled by a 4-20mA Pressure Transducer connected to a BiANCO NXT SPC (Single Pump Controller), allowing for precise digital pressure adjustment. Versatile and cost-effective, SUMMIT SERIES VMS solutions are designed for performance, reliability and ease of use.

Features:

  • Enhanced energy efficiency
  • Robust construction for longevity
  • Compact design for easy installation achieved by having a horizontal line installation with the same size inlet and outlet connection
  • Quiet operation
  • Made from high quality materials; pump body, shaft and impeller made from 304 stainless steel, mechanical seal made from graphite/S-IC
  • The removable coupling design allows for the convenient replacement of the motor without dismantling the pump from the pipeline
  • Designed for working conditions between -20 ºC to +120 ºC up to 25 bar pressure
  • Bearings lubricated with the pumped water
  • Motor fitted with a totally enclosed, fan-cooled 2 pole motor
  • IP55 rating
Features

The BiANCO NXT-SPC (Single Pump Controller) provides control and protection for an individual single phase pump. The controller is simple to operate. The user not only enjoys superior control and protection of the pump but the user display provides user information about the running state of the system.  By digitally monitoring the running current, the response time of the BiANCO NXT SPC is superior to traditional analogue overload methods.

NXT-SPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS

  • Manual or Automatic operation
  • NXT-SPC has an audible alarm and a flashing light to indicate an alarm state. It supports an external alarm unit
  • Pump accumulated running time memory
  • Pump start / stop delay time setting
  • Last 5 error log

PROTECTION FUNCTIONS - Protection functions can be set, enabled or disabled independently

  • Over voltage
  • Under voltage
  • Dry Run (under current)
  • Overload (over current)
  • Pump stall
  • Open phase protection
  • Pump ‘Anti-seize’ function (96 hr default)
