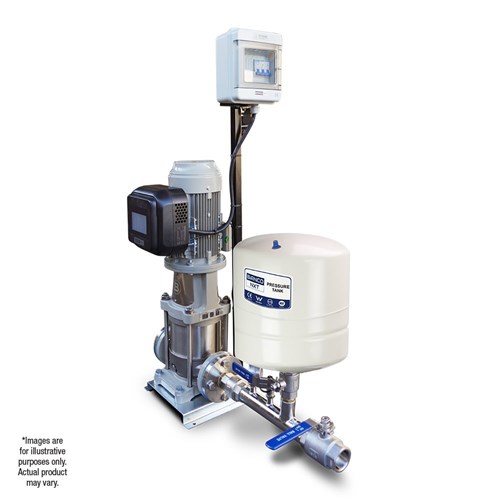

BIA-1VMS3/8M-DRIVE - VMS Electronic Drive Kits

Code: 812391

Print
Product Code
BIA-1VMS3/8M-DRIVE
Find Your Nearest Store
Product Documents
Description

Bianco NXT Summit Series Drive Controller Kits are an all in-one solution designed to achieve advanced control, enhanced protection and optimal energy efficiency with the Bianco NXT range of Variable Frequency Drives.

Featuring the latest touch screen technology and an intuitive user friendly menu, these kits provide easy access to all the information you need.

SUMMIT SERIES VMS solutions are designed for performance, reliability and ease of use.

Features:

  • Enhanced energy efficiency
  • Robust construction for longevity
  • Compact design for easy installation achieved by having a horizontal line installation with the same size inlet and outlet connection
  • Quiet operation
  • Made from high quality materials; pump body, shaft and impeller made from 304 stainless steel, mechanical seal made from graphite/S-IC
  • The removable coupling design allows for the convenient replacement of the motor without dismantling the pump from the pipeline
  • Designed for working conditions between -20 ºC to +120 ºC up to 25 bar pressure
  • Bearings lubricated with the pumped water
  • Motor fitted with a totally enclosed, fan-cooled 2 pole motor
  • IP55 rating
Features

The NXT DRIVE Series are a range of pump-specific Variable Frequency Drives designed for the Australasian market with both the end-user and the technician in mind.

Featuring a full colour touch screen interface for clear concise system information, fault codes and protection notices with a handy setup wizard so you’re always in control. NXT DRIVE is both simple to set up and to use.

Perfect for achieving constant pressure management of a single pump with advanced control, enhanced protection and optimal energy efficiency

Features:

  • Control and protect pumps
  • Variable frequency control to achieve constant pressure control
  • Minimise wasted energy and reduce the need for large pressure tanks
  • ‘Soft-start’ with low motor start current
  • Flow, pressure and current protections
  • RS485 comms
  • 25 plain language fault messages
  • Provides protection from; dry run, high and low voltage, input and output short circuits, high and low water pressure, input and output phase failure, high temperature and sensor faults
  • 24V, 10V and 5V supply circuits
  • Digital and analogue (voltage or current) inputs
  • Relay and analogue outputs
  • Multi-functional terminal
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
