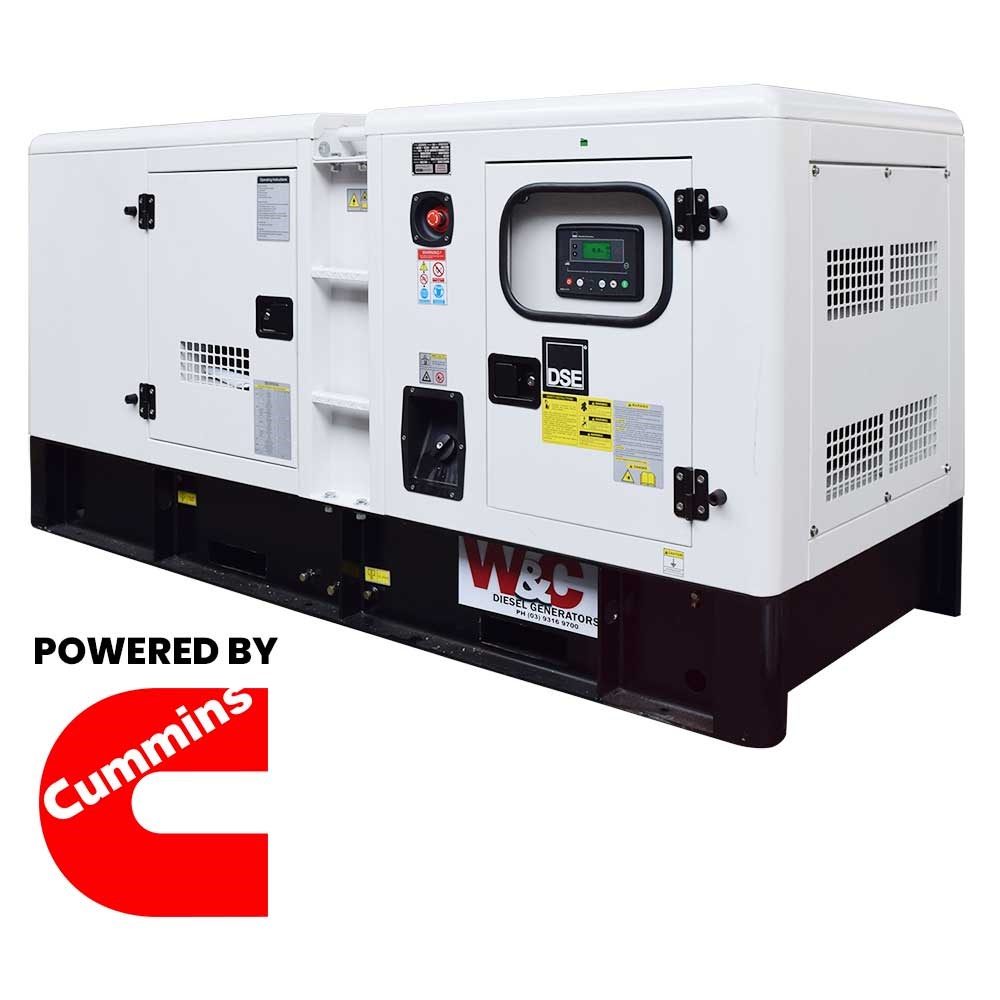

The Welling & Crossley ED200CuYE/3 200kVA Three Phase Standby Diesel Generator is a heavy-duty backup power solution designed for demanding applications that require dependable 415V three phase power during a mains outage. Powered by a Cummins 6CTA8.3-G2 turbocharged diesel engine and paired with a Crossley SLG Series single bearing, 4-pole brushless alternator, this generating set is built to deliver strong standby performance across commercial, rural, industrial, infrastructure, and essential service applications.
Supplied as a fully integrated Welling & Crossley power generation system, the ED200CuYE/3 includes a remote start/stop control system, 400 litre diesel fuel tank, weather protective acoustic canopy, and standard control starting system. This makes it well suited to sites needing high-capacity three phase standby power for machinery, pumps, commercial premises, rural infrastructure, production equipment, and critical electrical loads.
The complete generating set is mounted on a heavy duty fabricated steel base frame, with anti-vibration pads fitted between the engine, alternator, and base frame to help isolate vibration and support smoother operation. The weather protective acoustic canopy helps protect the generator from the elements while supporting practical on-site installation.
For safer diesel storage, the ED200CuYE/3 includes a fully bunded fuel tank compliant with AS 1940-2004, providing secondary containment designed to retain and recover spillage if required. A trickle charge battery charger is also fitted to help ensure the generator is ready to start when needed, with both 12V and 24V charging capability.
The control system supports remote or local starting with push-button start/stop and includes digital indicators for oil pressure, engine temperature, frequency, volts, and amps. Protection features include shutdown for low oil pressure and high temperature, an emergency stop button, output circuit breaker, and static battery charger. The control system can also be configured to operate with an Automatic Transfer Switch for automatic standby power applications.
With its Cummins turbocharged diesel engine, 200kVA standby rating, 415V three phase output, Crossley brushless alternator, bunded 400L fuel tank, acoustic canopy, and remote start capability, the ED200CuYE/3 is a strong choice for customers needing reliable three phase diesel standby power in a heavy-duty generator package.
Starting is remote or local to the machine with a push Start/Stop button and includes
- Alternator frequency & speed sensing
- Fully configurable via the interface or PC using USB
- Generator/load power monitoring
- Accumulated power monitoring
- Generator overload protection
- Fuel and start outputs
- Engine speed protection
- Engine run-time scheduler
- Battery voltage monitoring
- Static battery charger
