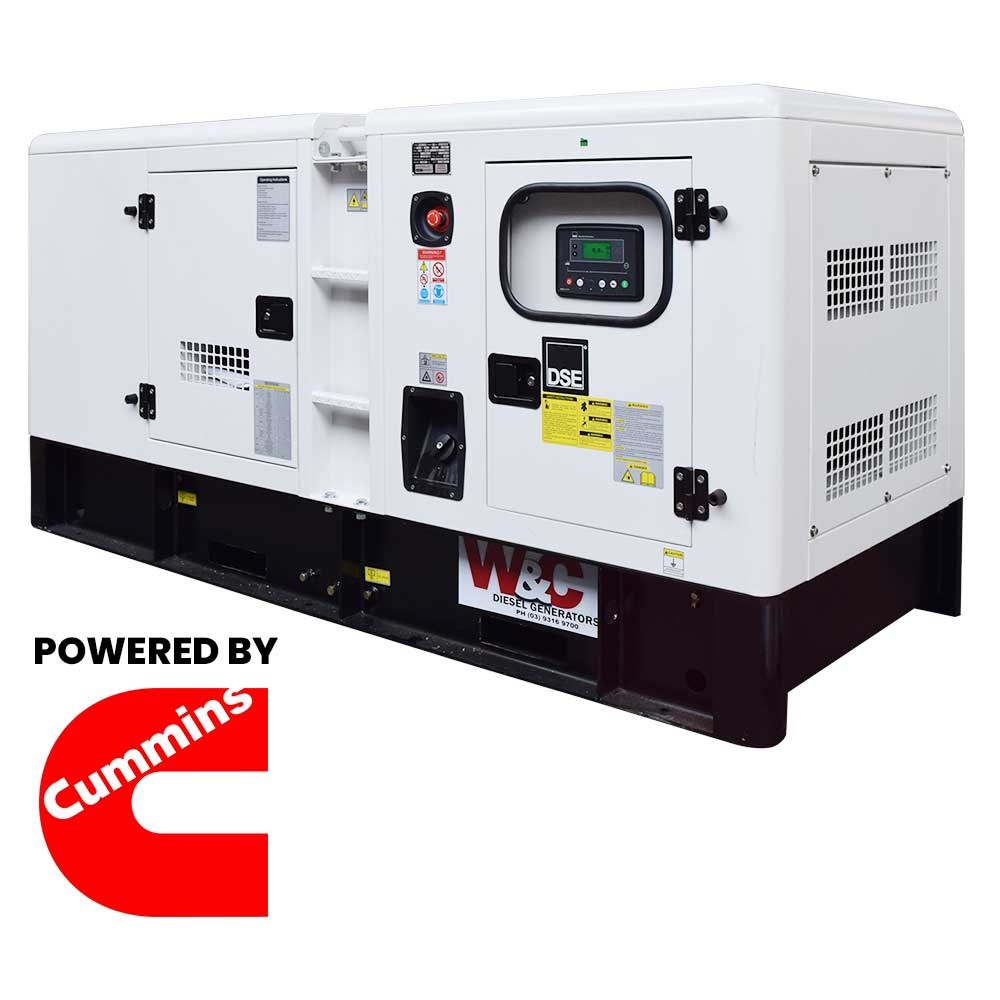

The Welling & Crossley ED100CuYE 100kVA Single Phase Standby Diesel Generator is a high-capacity backup power solution designed for applications that require dependable single phase diesel power during a mains outage. Powered by a Cummins 6BT5.9G2 turbocharged diesel engine and paired with a Crossley SLG Series single bearing, 4-pole brushless alternator, this generator is built to deliver strong standby performance across commercial, rural, industrial, workshop, and essential equipment applications.
Supplied as a fully integrated Welling & Crossley power generation system, the ED100CuYE includes a remote start/stop control system, 255 litre diesel fuel tank, weather protective acoustic canopy, and a standard control starting system. This makes it well suited to customers needing reliable backup power for larger single phase loads, commercial premises, pumps, rural infrastructure, workshops, and critical electrical systems.
The complete generating set is mounted on a heavy duty fabricated steel base frame, with anti-vibration pads fitted between the engine, alternator, and base frame to help isolate vibration and support smoother operation. The weather protective acoustic canopy helps protect the generator from the elements while supporting practical on-site installation.
For safer diesel storage, the ED100CuYE includes a fully bunded fuel tank compliant with AS 1940-2004, providing secondary containment designed to retain and recover spillage if required. A battery charger is also fitted to help ensure the generator is ready to start when needed, with both 12V and 24V charging capability.
The control system supports remote or local starting with push-button start/stop and includes digital indicators for oil pressure, engine temperature, frequency, volts, and amps. Protection features include shutdown for low oil pressure and high temperature, an emergency stop button, output circuit breaker, and static battery charger. The control system can also be configured to operate with an Automatic Transfer Switch for automatic standby power applications.
With its Cummins turbocharged diesel engine, 100kVA standby rating, Crossley brushless alternator, bunded 255L fuel tank, acoustic canopy, and remote start capability, the ED100CuYE is a strong choice for customers needing reliable single phase diesel standby power in a heavy-duty generator package.
Starting is remote or local to the machine with a push Start/Stop button and includes
- Alternator frequency & speed sensing
- Fully configurable via the interface or PC using USB
- Generator/load power monitoring
- Accumulated power monitoring
- Generator overload protection
- Fuel and start outputs
- Engine speed protection
- Engine run-time scheduler
- Battery voltage monitoring
- Static battery charger
